VELFAC

VELFAC Classic Wood/Aluminium

A traditionally styled timber-aluminium system combining modern performance with barrel hinges, profiled glazing bars and moulded internal frames.

0.8 W/m²KUw down to
32 / 48 mmDouble / triple glazing
10 yearsWindow warranty
Alu-cladExternal protection

What this system is designed to do

A traditionally styled timber-aluminium system combining modern performance with barrel hinges, profiled glazing bars and moulded internal frames.

Where we would specify it

It suits traditional new builds and renovations where heritage character is important but a low-maintenance external aluminium finish is preferred.

Features and performance

  • Traditional external barrel hinges
  • Profiled glazing bars
  • Moulded internal timber frames
  • Double- or triple-glazed
  • Shaped and curved elements
  • Powder-coated aluminium exterior

Technical specifications

UwDown to 0.8 W/m²K
Glass units32 mm double or 48 mm triple
Sound reductionRw 34–41 dB, glazing dependent
AccreditationSecured by Design configurations available
Windows / doors10 years / 5 years
Principal windowsOutward opening

Colours and finishes

Colours and finishes

Specified inside and out.

A powder-coated aluminium exterior that never needs painting, and an FSC® certified pine interior painted or clear lacquered to suit the room. Inside and outside are chosen independently, and the frame and sashes can differ too.

Outside

Material
Aluminium
Finish
Polyester powder coat, matt (gloss 30) or glossy (gloss 77)
Glazing bars
Aluminium, in the sash colour
Care
Never needs painting; wash with the glass a few times a year

Inside

Material
FSC® certified pine
Finish
Painted (gloss 20), or clear lacquer at extra cost
Note
Lacquered wood darkens with age and shows its finger joints
Glazing bars
In the frame colour

Standard colours 28

Select colours to add them to your project enquiry.

Every standard colour comes in gloss or matt, except RAL 1035 Pearl beige, which is made in 88% gloss only and takes longer to arrive.

The full RAL Classic range

Over 200 RAL Classic colours in all. Those outside the standard range cost extra: gloss 30 or 77 on aluminium, gloss 20 on wood.

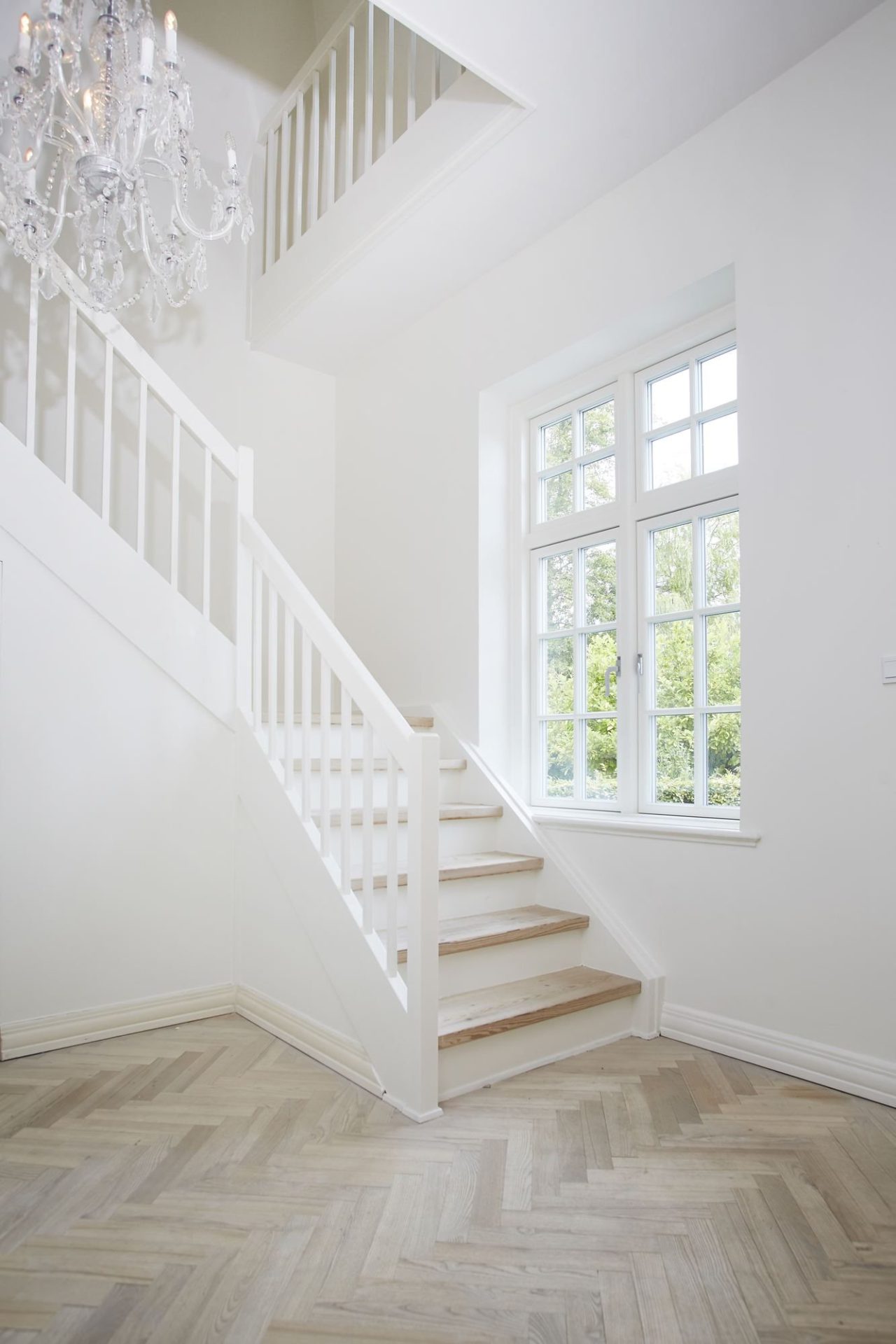

White painted VELFAC Classic window with glazing bars beside a staircase
Painted white White frames and glazing bars reflect daylight further into the room.

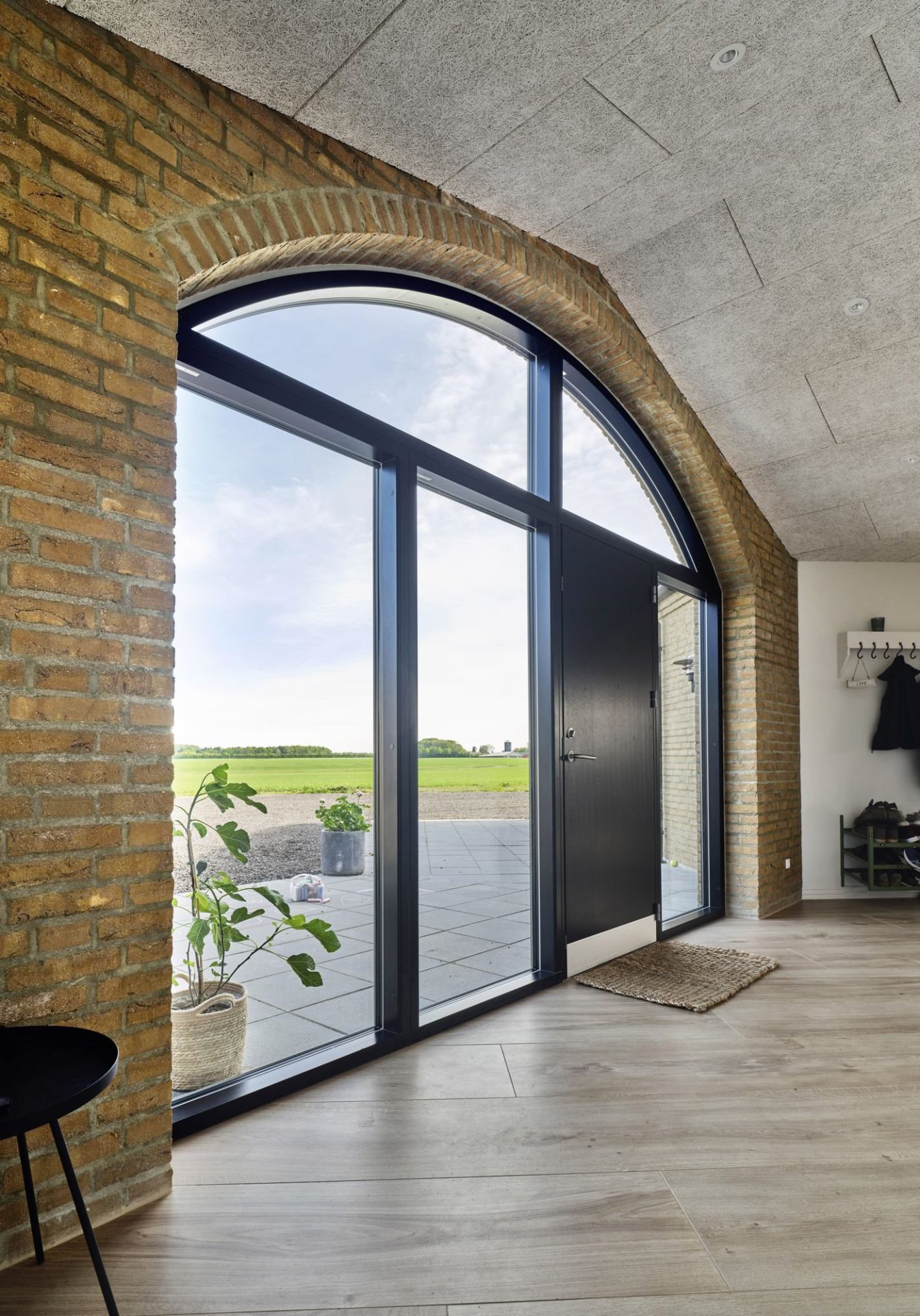

Black painted VELFAC Classic arched door and side light
Painted black Black frames draw the eye to the view. The grey glazing gaskets show as a slim line either side of the glass.

Also available

  • Glazing beads Supplied in grey. RAL 7035Light grey
  • Two-colour windows The frame in one colour and the sashes in another, at extra cost. Mullions and transoms take the frame colour.
  • Granite textured coatings A powder coat that looks and feels like rough-cut granite, from white through greys and blues to black. VELFAC’s UK team advise against it beside aluminium cills or pressings, as a colour match cannot be guaranteed.
  • Metallic coatings A powder coat with a metallic sheen, offered alongside the granite finishes as a special option. Like granite, it is quoted per project.
  • Anodised finishes A protective anodised surface in silver or bronze. It is a natural process, so shades can vary between elements and from the sample.
  • Raw aluminium Aluminium left without surface treatment, subject to VELFAC’s reservations. Not available on sandwich panels.
  • NCS colours A range of NCS colours for the timber inside, at extra cost.
  • External hinges and stays Grey (matt chrome) as standard, or white; other colours on larger projects. Their paint finish is not covered by the warranty.

Colours on screen are a guide only, and pearl and metallic finishes cannot be shown. Add your choices to your project enquiry and we will go through them with you.

Add to project enquiry

Source: VELFAC product database, colours, materials and surface finish; VELFAC “Frame colours and finishes”, September 2026. Glazing bead colour: VELFAC, September 2026.

FAQs

Common questions, answered.

The essentials on the VELFAC Classic Wood/Aluminium: what it is, how it performs, the options, and where it fits best.

Still have a question?

Our team can talk you through the detail for your project.

Ask a question +44 (0)1743 612 110
What is VELFAC Classic Wood/Aluminium?

A traditionally styled timber-aluminium system combining modern performance with barrel hinges, profiled glazing bars and moulded internal frames.

How does VELFAC Classic Wood/Aluminium perform?

Published performance includes Uw values down to 0.8 W/m²K with 32 mm double or 48 mm triple glazing, sound reduction of Rw 34–41 dB depending on the glazing, and Secured by Design configurations.

Which design and specification options are available?

Windows, patio and casement doors can be configured for cottages, farmhouses, mansions and similar traditional architecture, including shaped elements.

When would Eco Home Windows specify this system?

It suits traditional new builds and renovations where heritage character is important but a low-maintenance external aluminium finish is preferred.

Downloads

Drawings and technical data.

46 files for this system, published by VELFAC. Tell us who you are once and everything here opens for the rest of your visit.

System drawings 2 Frames, sections and system overviews
Interface details 14 Head, cill and threshold details by wall construction
Size limits 13 Minimum and maximum sizes for each opening type
Free opening and escape 6 Clear opening calculations for ventilation and egress
Thresholds 3 Threshold options by door type
Couplings and corners 4 Joining elements and corner solutions
Passivhaus data 3 Frame U-values and glazing data for PHPP modelling
Environmental declarations 1 EPDs and environmental data
