VELFAC

VELFAC Ribo Wood/Aluminium

A traditionally detailed timber-aluminium window and door family for English-style homes, renovations and new buildings.

0.8 W/m²KUw down to
32 / 52 mmDouble / triple glazing
10 yearsWindow warranty
SBDAccredited

What this system is designed to do

A traditionally detailed timber-aluminium window and door family for English-style homes, renovations and new buildings.

Where we would specify it

It suits projects needing traditional proportions with a low-maintenance aluminium exterior and coordinated windows and doors.

Features and performance

  • Traditional timber frame-and-sash appearance
  • Powder-coated aluminium exterior
  • Windows and several door types
  • Double- or triple-glazed
  • Glazing-bar configurations
  • FSC-certified pine

Technical specifications

UwDown to 0.8 W/m²K
Glass units32 mm double or 52 mm triple
Sound reductionRw 33–42 dB, glazing dependent
Windows / doors10 years / 5 years
AccreditationSecured by Design

Colours and finishes

Colours and finishes

Specified inside and out.

A powder-coated aluminium exterior that never needs painting, and an FSC® certified pine interior painted or clear lacquered to suit the room. Inside and outside are chosen independently, and the frame and sashes can differ too.

Outside

Material
Aluminium
Finish
Polyester powder coat, matt (gloss 30) or glossy (gloss 77)
Glazing bars
Aluminium, in the sash colour
Care
Never needs painting; wash with the glass a few times a year

Inside

Material
FSC® certified pine
Finish
Painted (gloss 20), or clear lacquer at extra cost
Note
Lacquered wood darkens with age and shows its finger joints
Glazing bars
In the frame colour

Standard colours 28

Select colours to add them to your project enquiry.

Every standard colour comes in gloss or matt, except RAL 1035 Pearl beige, which is made in 88% gloss only and takes longer to arrive.

The full RAL Classic range

Over 200 RAL Classic colours in all. Those outside the standard range cost extra: gloss 30 or 77 on aluminium, gloss 20 on wood.

White painted VELFAC Ribo windows around a dining room
Painted white White frames reflect daylight further into the room.

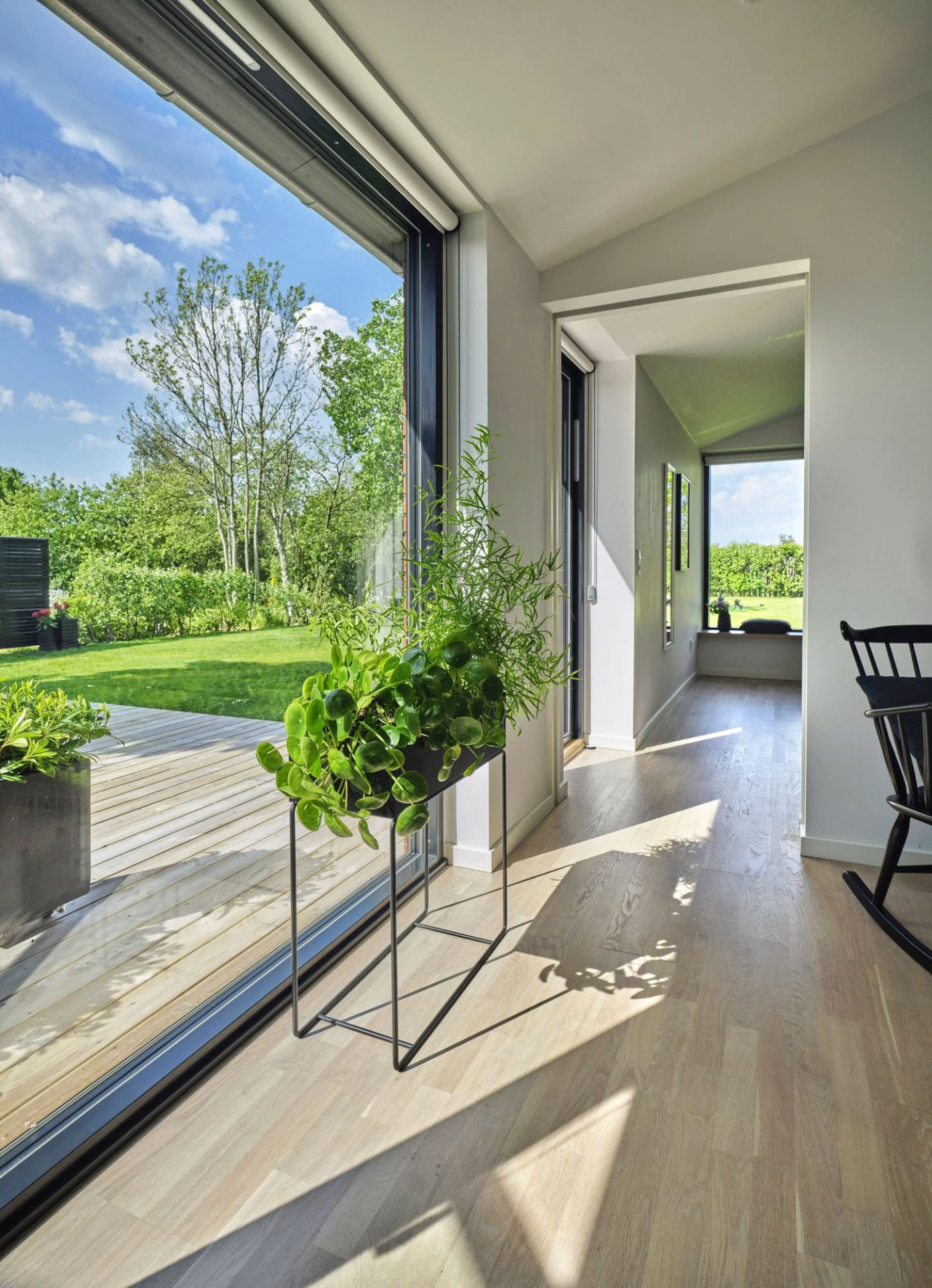

Black VELFAC Ribo frame on a tall glazed door to a garden
Painted black Black frames draw the eye to the view. The grey glazing gaskets show as a slim line either side of the glass.

Also available

  • Glazing beads Supplied in grey. RAL 7035Light grey
  • Two-colour windows The frame in one colour and the sashes in another, at extra cost. Mullions and transoms take the frame colour.
  • Granite textured coatings A powder coat that looks and feels like rough-cut granite, from white through greys and blues to black. VELFAC’s UK team advise against it beside aluminium cills or pressings, as a colour match cannot be guaranteed.
  • Metallic coatings A powder coat with a metallic sheen, offered alongside the granite finishes as a special option. Like granite, it is quoted per project.
  • Anodised finishes A protective anodised surface in silver or bronze. It is a natural process, so shades can vary between elements and from the sample.
  • Raw aluminium Aluminium left without surface treatment, subject to VELFAC’s reservations. Not available on sandwich panels.
  • NCS colours A range of NCS colours for the timber inside, at extra cost.

Colours on screen are a guide only, and pearl and metallic finishes cannot be shown. Add your choices to your project enquiry and we will go through them with you.

Add to project enquiry

Source: VELFAC product database, colours, materials and surface finish; VELFAC “Frame colours and finishes”, September 2026. Glazing bead colour: VELFAC, September 2026.

FAQs

Common questions, answered.

The essentials on the VELFAC Ribo Wood/Aluminium: what it is, how it performs, the options, and where it fits best.

Still have a question?

Our team can talk you through the detail for your project.

Ask a question +44 (0)1743 612 110
What is VELFAC Ribo Wood/Aluminium?

A traditionally detailed timber-aluminium window and door family for English-style homes, renovations and new buildings.

How does VELFAC Ribo Wood/Aluminium perform?

Published performance includes Uw values down to 0.8 W/m²K, 32 mm double or 52 mm triple glazing, sound reduction of Rw 33–42 dB depending on the glazing, and Secured by Design configurations.

Which design and specification options are available?

Windows, casement doors, patio doors and sliding doors are available with varied opening functions, glazing bars and powder-coated exterior colours.

When would Eco Home Windows specify this system?

It suits projects needing traditional proportions with a low-maintenance aluminium exterior and coordinated windows and doors.

Downloads

Drawings and technical data.

55 files for this system, published by VELFAC. Tell us who you are once and everything here opens for the rest of your visit.

System drawings 4 Frames, sections and system overviews
Interface details 14 Head, cill and threshold details by wall construction
Size limits 14 Minimum and maximum sizes for each opening type
Free opening and escape 8 Clear opening calculations for ventilation and egress
Thresholds 4 Threshold options by door type
Couplings and corners 6 Joining elements and corner solutions
Installation and care 1 Fitting, packing and maintenance guidance
Passivhaus data 3 Frame U-values and glazing data for PHPP modelling
Environmental declarations 1 EPDs and environmental data
