VELFAC 200 ENERGY

A contemporary triple-glazed timber-aluminium system with uniform slim sightlines across fixed and opening units. VELFAC 200 ENERGY coordinates windows, casement doors and sliding casement doors within one clear architectural language.

Down to 0.8 W/m²KUw value

48 mmTriple glazing

12 yearsSystem warranty

SBDAccredited configurations

Uniform sightlines for contemporary elevations

VELFAC 200 ENERGY uses the same slim sash profile for fixed, opening and motorised units, creating a consistent façade across a complete project. The timber-aluminium construction combines a durable powder-coated exterior with FSC-certified pine internally.

A coordinated window and door family

The triple-glazed system includes outward-opening windows, casement doors and sliding casement doors. Mullions, transoms and several glazing-bar arrangements provide design flexibility, while shaped and curved elements can be considered where the architecture requires them.

Features and performance

Triple-glazed timber-aluminium construction
Uniform slim sash profile across fixed, opening and motorised units
Windows, casement doors and sliding casement doors
Outward-opening configurations
FSC-certified pine internal frames
Low-maintenance powder-coated aluminium exterior
Horizontal, vertical, cross and T-shaped glazing-bar options
Shaped and curved elements available subject to design rules

Technical specifications

Frame materialsFSC-certified pine internally; powder-coated aluminium externally

Glazing specification48 mm triple glazing

Uw valueDown to 0.8 W/m²K

Sound reductionRw 33–43 dB, glazing dependent

Principal operationOutward-opening windows and casement doors

Element typesWindows, casement doors and sliding casement doors

AccreditationSecured by Design configurations available

System warranty12 years

Colours and finishes

Specified inside and out.

A powder-coated aluminium exterior that never needs painting, and an FSC® certified pine interior painted or clear lacquered to suit the room. The two are chosen independently.

Outside

Material: Aluminium
Finish: Polyester powder coat, matt (gloss 30) or glossy (gloss 77)
Glazing bars: Aluminium, in the sash colour
Care: Never needs painting; wash with the glass a few times a year

Inside

Material: FSC® certified pine
Finish: Painted (gloss 20), or clear lacquer at extra cost
Note: Lacquered wood darkens with age and shows its finger joints
Glazing bars: Grey, matching the glazing bead

Standard colours 28

Select colours to add them to your project enquiry.

Every standard colour comes in gloss or matt, except RAL 1035 Pearl beige, which is made in 88% gloss only and takes longer to arrive.

The full RAL Classic range

Over 200 RAL Classic colours in all. Those outside the standard range cost extra: gloss 30 or 77 on aluminium, gloss 20 on wood.

White painted VELFAC 200 frames on glazed doors to a deck — **Painted white** White frames reflect daylight further into the room.

Black VELFAC 200 frames around a full height garden view — **Painted black** Black frames draw the eye to the view.

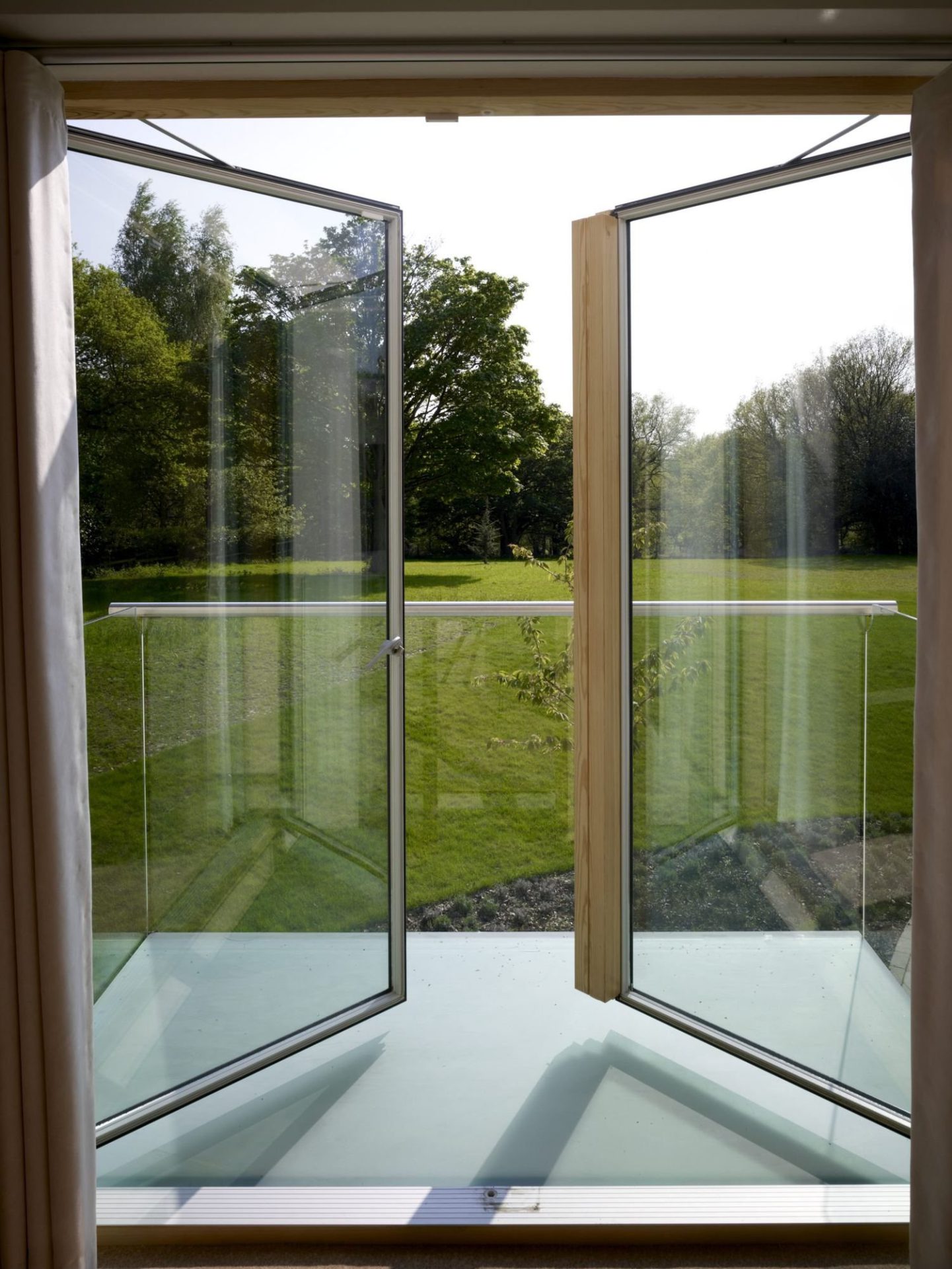

Clear lacquered timber frame around open VELFAC 200 doors — **Clear lacquer** Clear lacquer shows the warmth of the timber, finger joints included.

Also available

Glazing beads Burglary-resistant internal beads, supplied in grey. RAL 7035Light grey
Granite textured coatings A powder coat that looks and feels like rough-cut granite, from white through greys and blues to black. VELFAC’s UK team advise against it beside aluminium cills or pressings, as a colour match cannot be guaranteed.
Metallic coatings A powder coat with a metallic sheen, offered alongside the granite finishes as a special option. Like granite, it is quoted per project.
Anodised finishes A protective anodised surface in bronze, silver or black. It is a natural process, so shades can vary between elements and from the sample.
Raw aluminium Aluminium left without surface treatment, subject to VELFAC’s reservations. Not available on sandwich panels.
NCS colours A range of NCS colours for the timber inside, at extra cost.

Colours on screen are a guide only, and pearl and metallic finishes cannot be shown. Add your choices to your project enquiry and we will go through them with you.

Add to project enquiry

Source: VELFAC product database, colours, materials and surface finish; VELFAC “Frame colours and finishes”, September 2026. Glazing bead colour: VELFAC, September 2026.

FAQs

Common questions, answered.

The essentials on the VELFAC 200 ENERGY: what it is, how it performs, the options, and where it fits best.

Still have a question?

Our team can talk you through the detail for your project.

Ask a question +44 (0)1743 612 110

Is VELFAC 200 ENERGY double or triple glazed?

The current VELFAC 200 ENERGY system is triple glazed with 48 mm glazing. The earlier double-glazed version is obsolete.

What U-value can the system achieve?

Published system information states Uw values down to 0.8 W/m²K. The final whole-window value depends on element size, opening type and specification.

Do fixed and opening windows look different?

The system uses a uniform slim sash profile for fixed, opening and motorised units, helping maintain consistent sightlines across the façade.

Which products are included in the family?

VELFAC 200 ENERGY includes windows, casement doors and sliding casement doors in timber and aluminium.

What warranty is published for VELFAC 200 ENERGY?

The supplier product database states a comprehensive 12-year warranty for the system.

Downloads

Drawings and technical data.

49 files for this system, published by VELFAC. Tell us who you are once and everything here opens for the rest of your visit.

System drawings 1 Frames, sections and system overviews

Interface details 7 Head, cill and threshold details by wall construction

Size limits 17 Minimum and maximum sizes for each opening type

Free opening and escape 11 Clear opening calculations for ventilation and egress

Thresholds 2 Threshold options by door type

Couplings and corners 4 Joining elements and corner solutions

Design options 2 Glazing bars, panels and colours

Installation and care 1 Fitting, packing and maintenance guidance

Passivhaus data 3 Frame U-values and glazing data for PHPP modelling

Environmental declarations 1 EPDs and environmental data
