Schüco Passivhaus Certified AWS 90 SI
A Passivhaus-certified aluminium window system for sustainable, design-led buildings requiring exceptional insulation without sacrificing narrow profiles or architectural flexibility.
Certified performance for low-energy architecture
With a 95 mm basic frame depth and compatibility with high-performance triple glazing, AWS 90 SI is engineered around the demanding thermal targets of Passivhaus construction. Concealed vents and single- or double-vent block-window configurations maintain a restrained architectural appearance.
Lower-impact insulation materials
The Green Generation specification introduces renewable raw materials, including castor-oil-derived content within its polyamide insulating components. This reduces reliance on fossil-derived materials while retaining the performance expected from a highly insulated aluminium system.
Features and performance
- Passivhaus Institute-certified system
- Single- and double-vent block-window configurations
- Concealed vent design with narrow visible profiles
- Triple-glazing compatibility
- Renewable raw materials within insulation components
- Powder-coated, anodised and dual-colour finishes
Technical specifications
Colours and finishes
Colours and finishes
One colour, or two.
The aluminium profiles are polyester powder coated or anodised, in a full range of finishes. Dual colour construction lets the inside differ from the outside.
Outside
- Material
- Aluminium
- Finish
- Polyester powder coat, or anodised
Inside
- Material
- Aluminium
- Colour
- The outside colour, or a different one with dual colour
Choose by RAL reference
Powder coating comes in a full range of colours. Browse the RAL Classic range and add the colours you have in mind.
Your selection
Colours on screen are a guide only, and pearl and metallic finishes cannot be shown. Add your choices to your project enquiry and we will go through them with you.
Add to project enquirySource: Zyle Fenster’s specification and FAQs for this system.

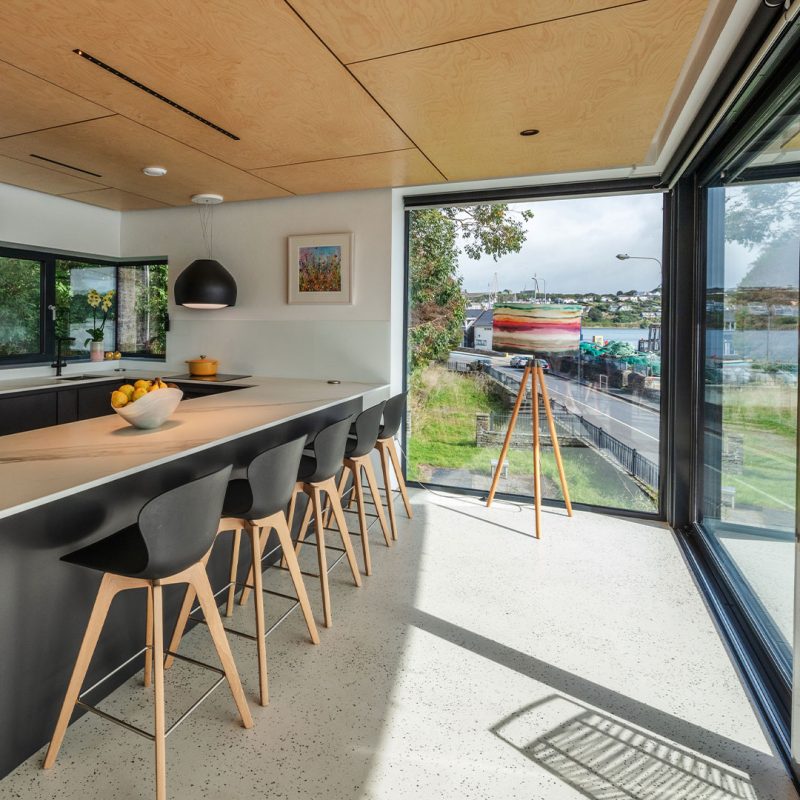

Gallery
FAQs
Common questions, answered.
The essentials on the Schüco Passivhaus Certified AWS 90 SI: what it is, how it performs, the options, and where it fits best.
Still have a question?
Our team can talk you through the detail for your project.
Is AWS 90 SI Passivhaus certified?
Yes. The system is certified by the Passivhaus Institute in the appropriate specification.
Why is it suited to low-energy buildings?
Its deep insulated frame, advanced thermal breaks and triple-glazing compatibility are designed to achieve very low heat loss.
Which renewable materials are used?
The Green Generation specification uses renewable raw materials, including castor-oil-derived content, within insulating bars and related components.
Can different internal and external colours be selected?
Yes. Dual-colour powder-coated and anodised options are available.
Is it suitable for residential and commercial buildings?
Yes. It can be specified for private homes, self-builds and commercial projects where certified or very high insulation performance is required.
Downloads
Drawings and technical data.
3 files for this system, published by Zyle Fenster. Tell us who you are once and everything here opens for the rest of your visit.
Datasheets 2
Specification sheets and technical data
CAD drawings 1
DWG section details for drawing packages
