Schüco High Insulation AWS 70 HI
A premium 70 mm aluminium window system combining high insulation, narrow framing and flexible hardware options for demanding residential and commercial architecture.
High insulation with architectural flexibility
AWS 70 HI supports inward- and outward-opening casements with conventional, concealed or electromechanical fittings. The combination of thermally broken profiles and restrained face widths allows the system to maximise daylight while addressing demanding thermal, weather and acoustic requirements.
Designed for dependable long-term performance
Drained and ventilated glazing, EPDM gaskets and polyamide thermal breaks help control water, air leakage and heat transfer. A broad finish range and dual-colour capability allow the external architecture and internal palette to be considered separately.
Features and performance
- High-insulation 70 mm aluminium construction
- Narrow sightlines for increased natural light
- Inward- and outward-opening casements
- Concealed or electromechanical fitting options
- Double- and triple-glazing compatibility
- Secured by Design configurations available
Technical specifications
Colours and finishes
Colours and finishes
One colour, or two.
The aluminium profiles are polyester powder coated or anodised, in a full range of finishes. Dual colour construction lets the inside differ from the outside.
Outside
- Material
- Aluminium
- Finish
- Polyester powder coat, or anodised
Inside
- Material
- Aluminium
- Colour
- The outside colour, or a different one with dual colour
Choose by RAL reference
Powder coating comes in a full range of colours. Browse the RAL Classic range and add the colours you have in mind.
Your selection
Colours on screen are a guide only, and pearl and metallic finishes cannot be shown. Add your choices to your project enquiry and we will go through them with you.
Add to project enquirySource: Zyle Fenster’s specification and FAQs for this system.

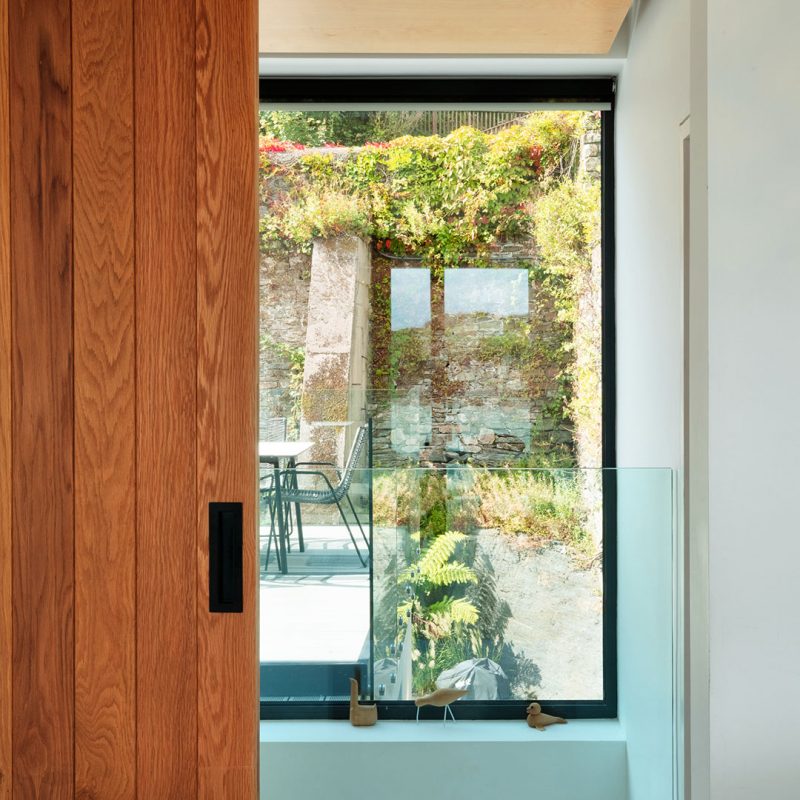

Gallery
FAQs
Common questions, answered.
The essentials on the Schüco High Insulation AWS 70 HI: what it is, how it performs, the options, and where it fits best.
Still have a question?
Our team can talk you through the detail for your project.
What U-values can AWS 70 HI achieve?
Indicative Uw values start from 1.3 W/m²K with double glazing and 1.1 W/m²K with triple glazing, depending on the frame and glass specification.
Is AWS 70 HI Passivhaus certified?
It is intended for high-insulation and low-energy buildings. Where certified Passivhaus performance is required, AWS 90 SI is the more appropriate Schüco system.
Which opening configurations are supported?
The system supports inward- and outward-opening casements with several manual, concealed and powered hardware options.
Which finishes are available?
A broad RAL powder-coated and anodised finish range is available, including dual-colour construction.
What acoustic performance is possible?
Depending on the glazing, sound reduction can reach approximately Rw 44 dB.
